Special offer
WRL CAMERA 3MP IR CUBE WIFI/C3A DAHUA
MPN:
C3A
Brand:
DAHUA
Connection Type:
Wireless
Night Vision:
Yes
Resolution:
2304 x 1296 pixels
€36.30
/ incl. VAT
€30.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
9 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

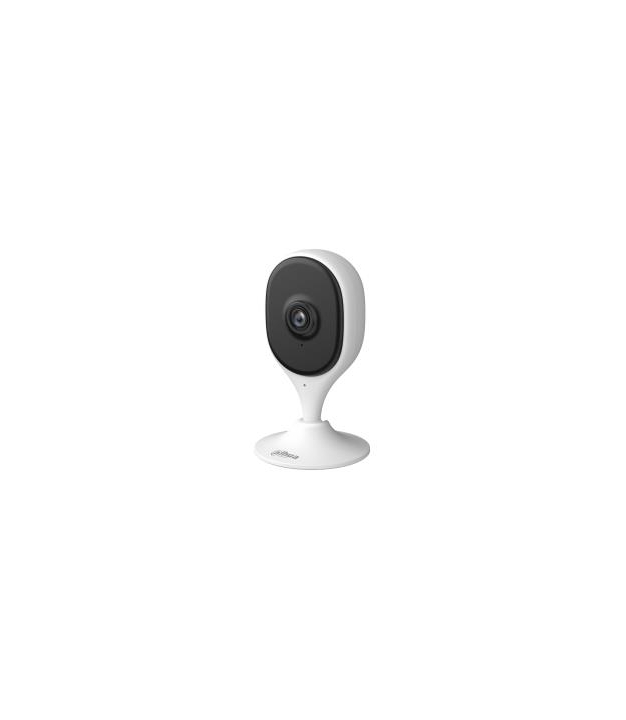

3MP Indoor Fixed-focal Wi-Fi Cube Network Camera
Series Overview
The Cube Series, which is under the Dahua Wireless series, are cameras that are not only easy to install and operate, but also perform outstandingly and are cost-effective. They capture sharp, detailed images of scenes in high definition and offer powerful functions including AI human and pet detection, privacy mode, and two-way talk. Information is synchronously sent to your phone to keep you up-to-date. These cameras are widely used in small and medium-sized settings such as small-sized retail stores.
Specifications
General
Model
C3A
Type
IP security camera
Model Name
DH-C3A
Angle Rotation
180 °
Dc Output Current
1 A
Digital Wide Dynamic Range Dwdr
Yes
Storage
Compatible Card Types
MicroSD (TransFlash)
Max Memory Card
256 GB
Connectivity
Bluetooth
Yes
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
No
Wi-Fi
Yes
Card Reader
Yes
Wi-Fi
Wi-Fi generation sets peak speed and how well the device coexists with neighbours. Wi-Fi 6 (802.11ax) is the modern baseline; Wi-Fi 6E adds the cleaner 6 GHz band; Wi-Fi 7 (Be) brings multi-link operation and even higher peaks. The router and the client m
802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)
Audio
Bit Depth / Bitrate
H.265: 80 kbps-4096 kbps
Built-in Microphone
Yes
Built-in Speakers
Yes
Power
Max Power Draw
2.48 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
1.49 W
Power Source
DC
DC Output Voltage
5
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/3.2
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
2304 x 1296/640 x 360
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
3 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Field of View (Diagonal)
117 °
Field of View (Horizontal)
99 °
Field of View (Vertical)
55 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
2
Night Vision
Yes
IR Night Vision Range
10 m
IR LEDs
1
Pan Range
0 - 360 °
Camera Shutter Type
Electronic
Features
Number of Cameras
1
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.265
Motion Detection
Yes
Privacy Protection
Yes
Voice Codecs
G.711a
Compatibility
Mobile OS Support
Android/iOS
Physical
Weight
0.095000
Form Factor
Cube
Mounting Type
Desk/Wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor
Colour
Black, White
Height
119.2 mm
Tilt Adjustment
-10 - 70 °
Depth
31.9 mm
Width
68 mm
Additional
Certifications
CE
Warranty
36
SKU
1419297
EAN
6923172579683
