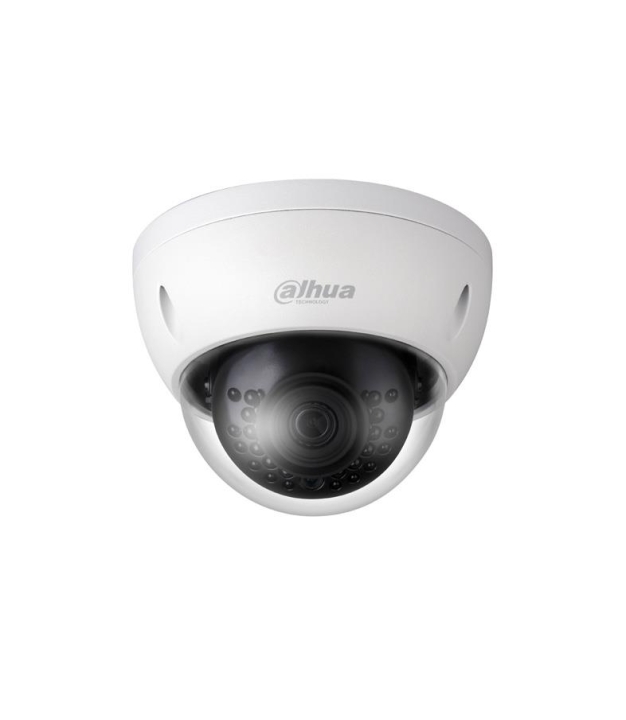

Dahua Technology DH-IPC-H3BP-0360B security camera Spherical IP security camera Indoor 2304 x 1296 pixels Desk
MPN:
H3B
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
€42.11
/ incl. VAT
€34.80
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
20 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Dahua Wireless series cameras are not only easy to install and operate, but also perform outstandingly and cost-effective. They provide full coverage of a scene with 3MP resolution, 0° to 350° pan and -5°to 80° tilt. Their powerful functions, such as one-click proactive call, preset petrol, AI human detection & pet detection, and auto tracking, assist with the accurate detection and continuous tracking of targets. Information is also synchronously sent to your phone to keep you up-to-date. These cameras are widely used in small and medium-sized scenes such as small-sized retail stores.
Specifications
General
Model
H3B
Type
IP security camera
A 3d Nr
Yes
Angle Rotation
355 °
Client Interoperability
ONVIF, PSIA, CGI
Digital Wide Dynamic Range Dwdr
Yes
Digital Zoom
16 x
Fixed Focus
Yes
Mirror
Yes
Number Of Video Streams
2
Streaming Method
Multicast/Unicast
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
256 MB
Storage
Built-in HDD
No
ROM Capacity
16 MB
Display
Video Resolutions
1280 x 720/1920 x 1080/2304 x 1296/2688 x 1520/352 x 288/704 x 480/704 x 576 pixels
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
LAN Ports
1
LAN Speed
Fast Ethernet
Interface
Connection type: USB connects externally; SATA is used for internal drives.
RJ-45
Audio
Bit Depth / Bitrate
H264H:80K ~ 10240Kbps
Power
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
4.3 W
Power Source
DC
Software
Management Software
Smart PSS, DSS, Easy4ip
Browser Supported
IE, Chrome, Firefox, Safari
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3(4)~1/100000 s
Flip / Mirror Image
Flip: vertical. Mirror: horizontal. For cameras mounted upside-down.
Yes
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/3
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
4 MP
Optical Zoom
Optical zoom uses lens movement (quality preserved). Digital zoom crops (loses quality).
Yes
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Detection Distance
63 m
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
6 m
Field of View (Horizontal)
106 °
Field of View (Vertical)
56 °
Night Vision
Yes
IR Night Vision Range
30 m
Effective Pixels (H×V)
2688 x 1520 pixels
IR LEDs
12
Observation Distance
25 m
Recognition Distance
13 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Lamp/Manual/Natural/Outdoor
Pan Range
0 - 355 °
Video Streaming
Yes
Fixed Focal Length
2.8 mm
Camera Shutter Type
Electronic
Networking
Networking Standards
IEEE 802.3af
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP
Max Concurrent Users
20 user(s)
Power Over Ethernet Poe
No
Features
Analog Signal Formats
PAL
Automatic Gain Control
Yes
Cabling Technology
10/100Base-T(X)
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+
Motion Detection
Yes
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Ir Control
Auto/Manual
Smart Ir
Yes
Compatibility
Mobile OS Support
Android/iOS
Physical
Weight
0.340000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Mounting Type
Ceiling
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Height
81 mm
Tilt Adjustment
0 - 65 °
Focus Adjustment
2.0
Additional
Certifications
CE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B
Warranty
36
SKU
1419295
EAN
6939554911910
