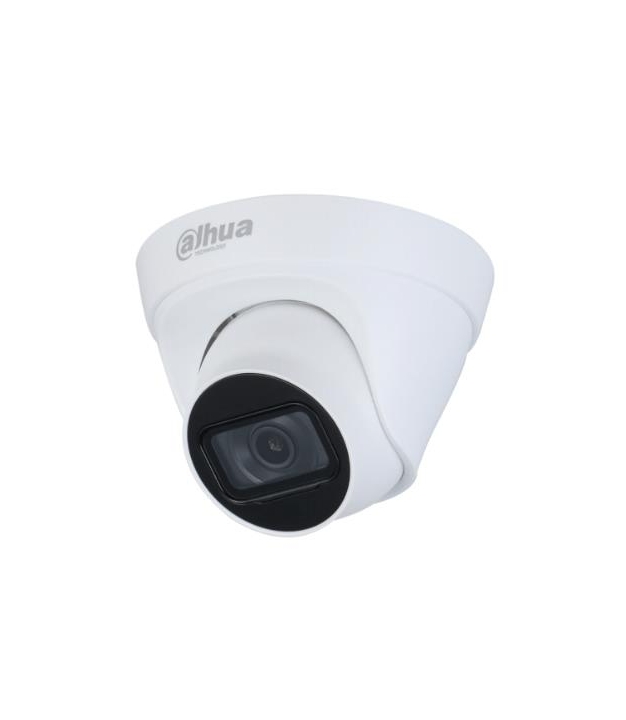

Dahua Technology Entry DH-IPC-HDW1230T1-S4 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
MPN:
F5D-IL-0280B
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
1920 x 1080 pixels
€59.53
/ incl. VAT
€49.20
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
9 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.
Specifications
General
Model
F5D-IL-0280B
Type
IP security camera
Model Name
DH-IPC-HDW1230T1-S4
Angle Rotation
360 °
Digital Wide Dynamic Range Dwdr
Yes
Fixed Focus
Yes
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
64 MB
Storage
Built-in HDD
No
ROM Capacity
16 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
LAN Ports
1
LAN Speed
Fast Ethernet
Power
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
4.3 W
Power Source
DC, PoE
DC Output Voltage
12
Software
Management Software
Smart PSS; DSS; DMSS
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3-1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
IR Cut Filter
Mechanically removes IR filter at night for true night vision.
Yes
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.01 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported Video Modes
1080p/720p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
2 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Min Focusing Distance
0.5 m
Detection Distance
37.3 m
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
3.7 m
Field of View (Diagonal)
125 °
Field of View (Horizontal)
105 °
Field of View (Vertical)
57 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
2
Night Vision
Yes
IR Night Vision Range
30 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
Effective Pixels (H×V)
1920 x 1080 pixels
IR LEDs
1
Observation Distance
14.9 m
Recognition Distance
7.5 m
Video Formats
H.264/H.265/M-JPEG
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 355 °
Fixed Focal Length
2.8 mm
Camera Shutter Type
Electronic
Networking
Network Protocols
IPv4; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Features
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Motion Sensor
Yes
Smart Ir
Yes
Compatibility
Mobile OS Support
Android/iOS
Web Browser Access
Yes
Physical
Weight
0.240000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Mounting Type
Ceiling
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Height
85.5 mm
Tilt Adjustment
0 - 78 °
Additional
Warranty
36
SKU
1449320
EAN
6939554980404
