Special offer
WRL CPE OUTDOOR/SXTR&R11E-LTE7 MIKROTIK
MPN:
SXTR&R11E-LTE7
Brand:
MikroTik
€110.28
/ incl. VAT
€91.14
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
27 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

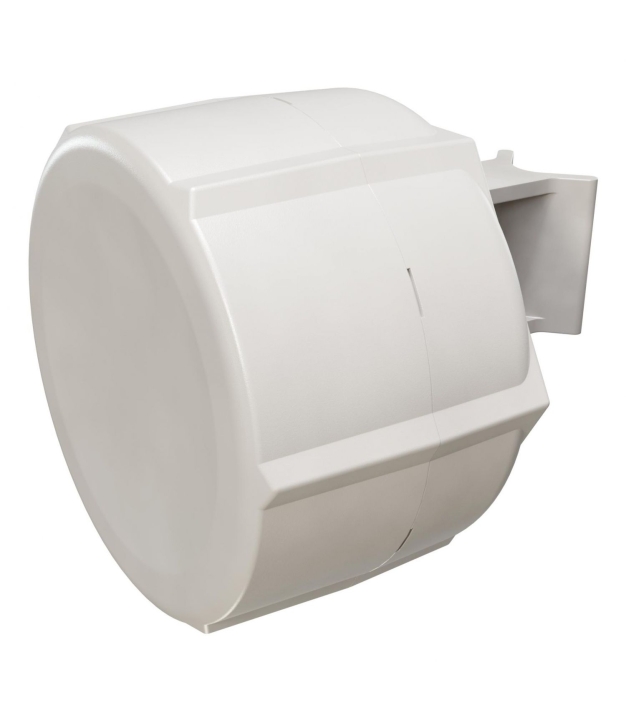

MIKROTIK SXT LTE7 kit (SXTR&R11E-LTE7)
A rugged outdoor LTE CPE with the new R11e-LTE7 modem inside. Delivers stable, fast Internet where phones fail – ideal for farms, off-grid connections, and countryside estates. Now with better uplink, PoE in/out, and a wide 12–57 V power range. Mount it, connect, and stay online. Faster uploads. Lower latency. Same trusted SXT design that stays hidden in plain sight.
| Feature | Specification |
| Product code | SXT&R11e-LTE7 |
| CPU | QCA9531 650 MHz |
| CPU architecture | MIPSBE |
| Size of RAM | 64 MB |
| RAM type | DDR2 |
| Storage | 16 MB Flash |
| Number of 100M Ethernet ports | 2 |
| MiniPCIe slots | 1 |
| Switch chip model | QCA9531 |
| LTE modem | R11e-LTE7 |
| TAC | 35312597 |
| LTE Category | 7 (DL: 300 Mbps; UL: 100 Mbps) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz) |
| LTE TDD bands | 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) |
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
| 3G bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz) |
| Dimensions | 140 x 140 x 56 mm |
| Operating system | RouterOS v7, License level 3 |
| Operating temperature | -40°C to +60°C |
Specifications
General
Warranty
12
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP54
Model Name
SXTR&R11e-LTE7
Certifications
CE/EAC/RoHS
Memory Bandwidth
Memory bandwidth (GB/s or Gbps) is the maximum amount of data the GPU can move to and from VRAM per second. High-resolution textures and 4K rendering need high bandwidth; a fast GPU with too-narrow bandwidth becomes the bottleneck. Higher is always better
300 Mbit/s;100 Mbit/s
Device Type
Cellular network modem/router
Model
SXT LTE7 kit
Suitable For Outdoor Use
Yes
Power Over Ethernet Poe Ports Quantity
2
Storage
Internal Storage
0.016 GB
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
200000 h
Processor
Processor Model
QCA9531
Built-in Processor
Yes
Base Clock Speed
Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu
0.65 GHz
CPU Brand
Qualcomm
Connectivity
SIM Type
MicroSIM
4G Bands
1500/1800/2100/2300/2500/2600/700/800/850/900 MHz
A 4g Lte Category
7
4G Standard
LTE-TDD & LTE-FDD
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Ethernet Lan Interface Type
Fast Ethernet
LAN Ports
2
Number Of Sim Cards
2
Wi-Fi
No
Physical
Mounting Orientation
Horizontal: disc tray opens forward. Vertical: drive is mounted upright.
Pole mounting
Colour
White
Additional
SKU
1451066
EAN
4752224010148
Power
AC Adapter Included
Yes
Input Voltage
12 - 57 V
Max Power Draw
24 W
Power Source
PoE
Memory
RAM
0.064 GB
Networking
Data Network
3G/4G
Ethernet Data Rates
10/100 Mbit/s
